■ Working principle
The basic principle of the ultrasonic vibrating screen is that the high-frequency electric oscillation generated by the oscillator is converted into sinusoidal and longitudinal oscillation by the transducer.These fluctuations are transmitted to the pre-tuned rod resonator, and then uniformly transmitted to the screen surface.
■Features
1. With self- cleaning function, the mesh is not blocked.
2. Change the characteristics of screening materials.
3. There is no need to add anti-blocking devices such as pin balls and the screen has a long service life.
4. Suitable for 40- 635 mesh, especially for sieving particles below 100 mesh.
5. The sieving particle size can be increased by 1-70%，and the output can be increased by a maximum of 10 times.
6. Ultra-high screening particle size can effectively solve strong adsorption,easy to agglomerate,and high static Screening problems such as electricity, high density and light specific gravity.

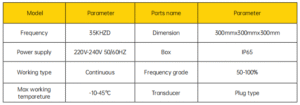

■Ultrasonic technical Parameter
